SPECIFICATIONS

Camera Connector: RCA + DC Connectors

Camera Features: Night Vision Waterproof Anti-shock

Camera Resolution: 520TV Line

Car Fitment: Universal

Combination: A/V input

Connection: AV

Function: Car Monitor

Make: iPoster

Model Number: IP-4300-RVM,IP-0009-360IR

Place of Origin: China

Resolution: 800*480

Screen Size: 4.3 Inches

Screen Type: LCD

Type: Rearview Mirror

Voltage: 12V

Warranty: 1 Year

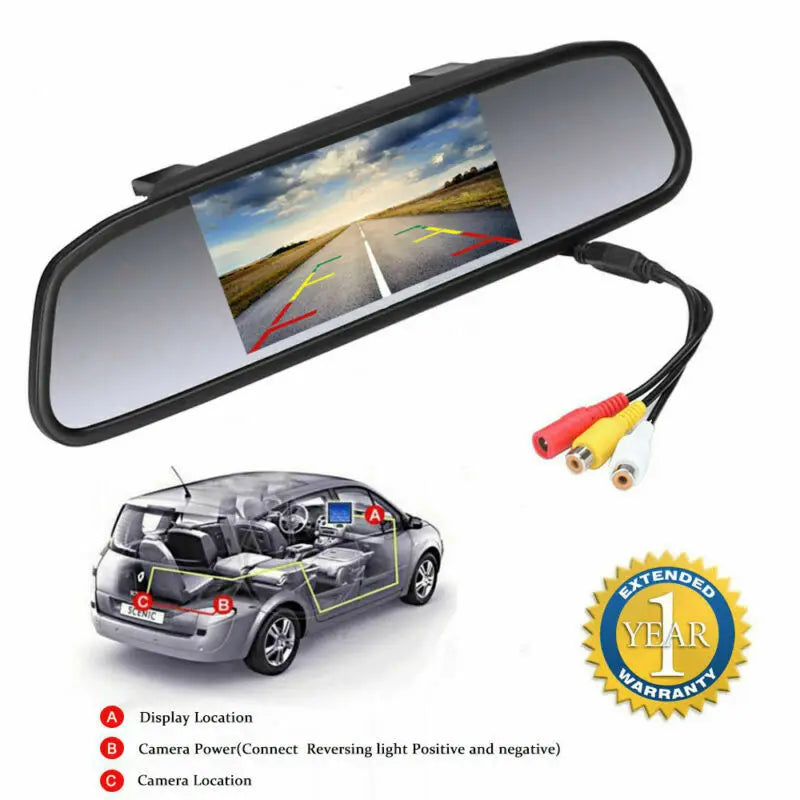

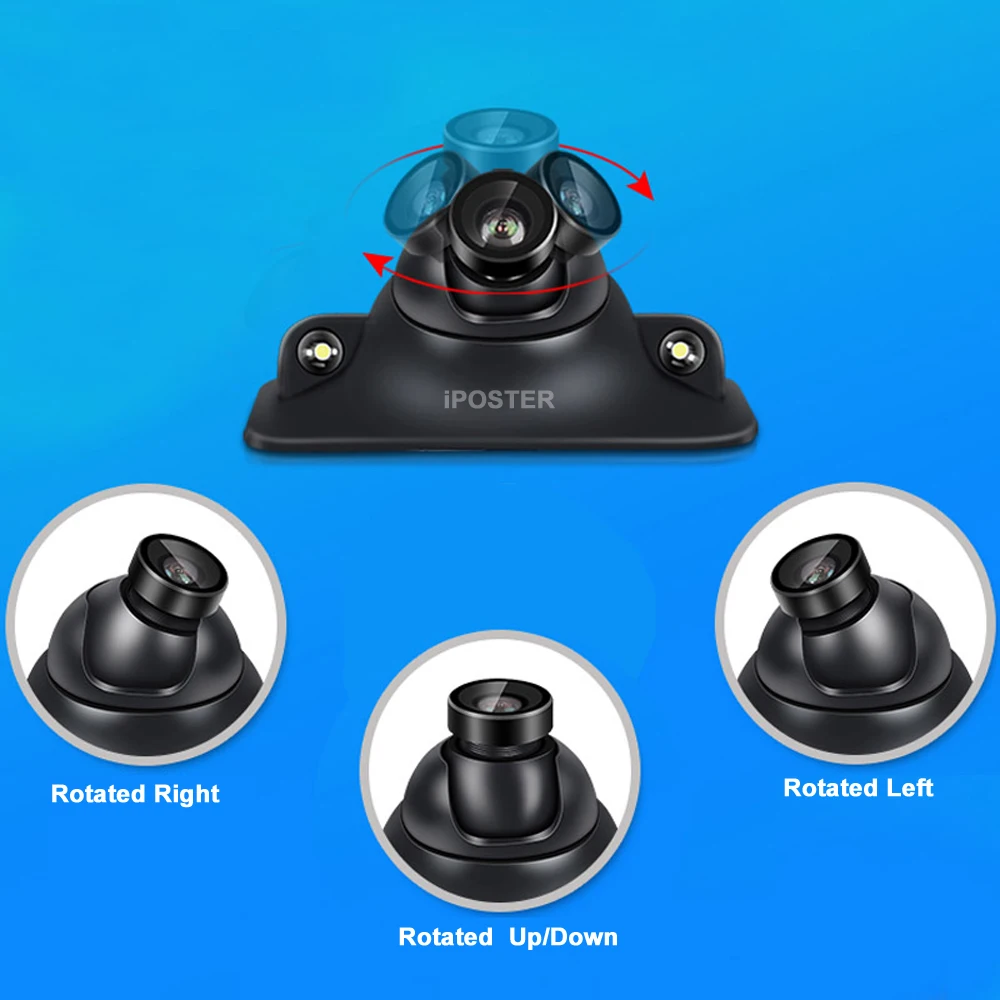

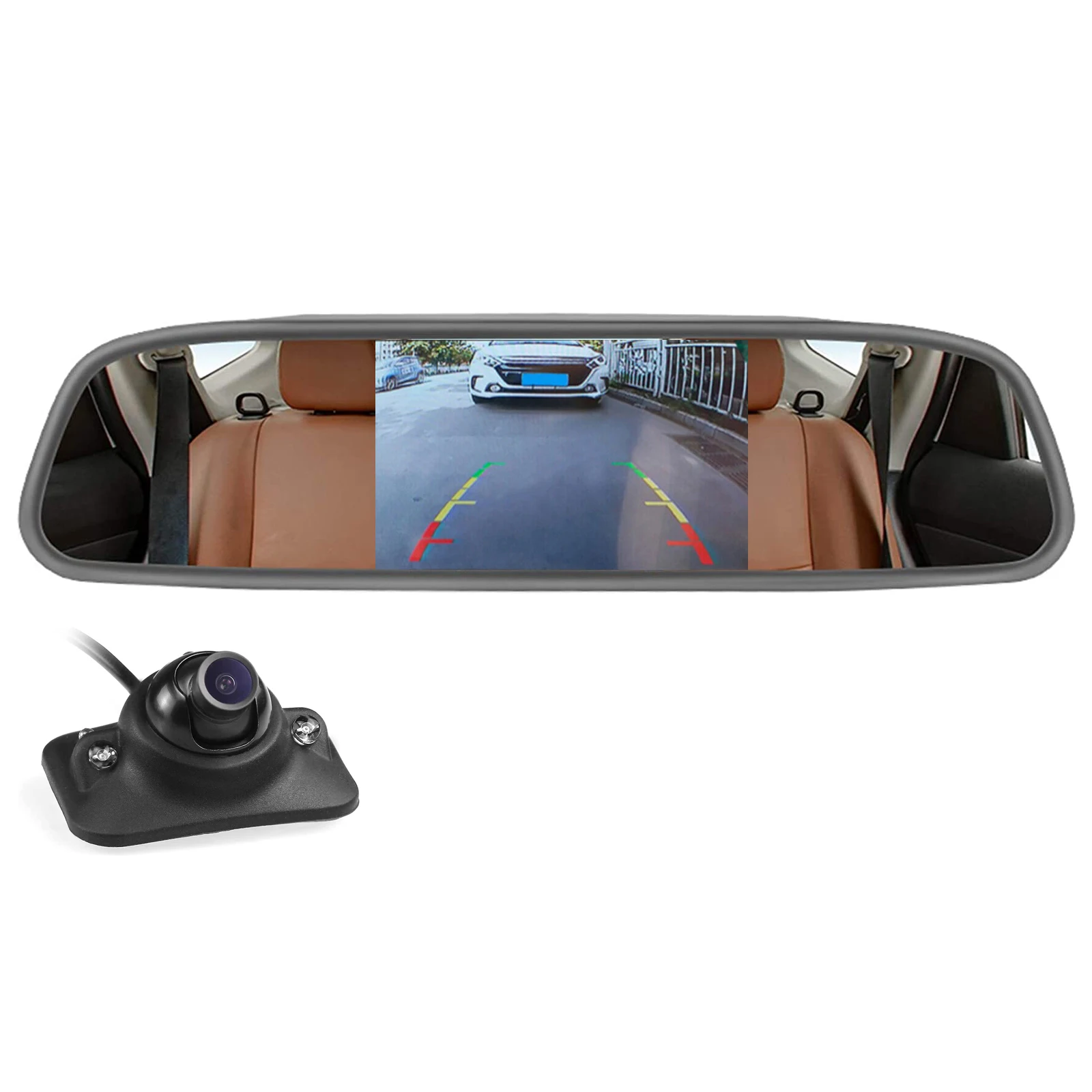

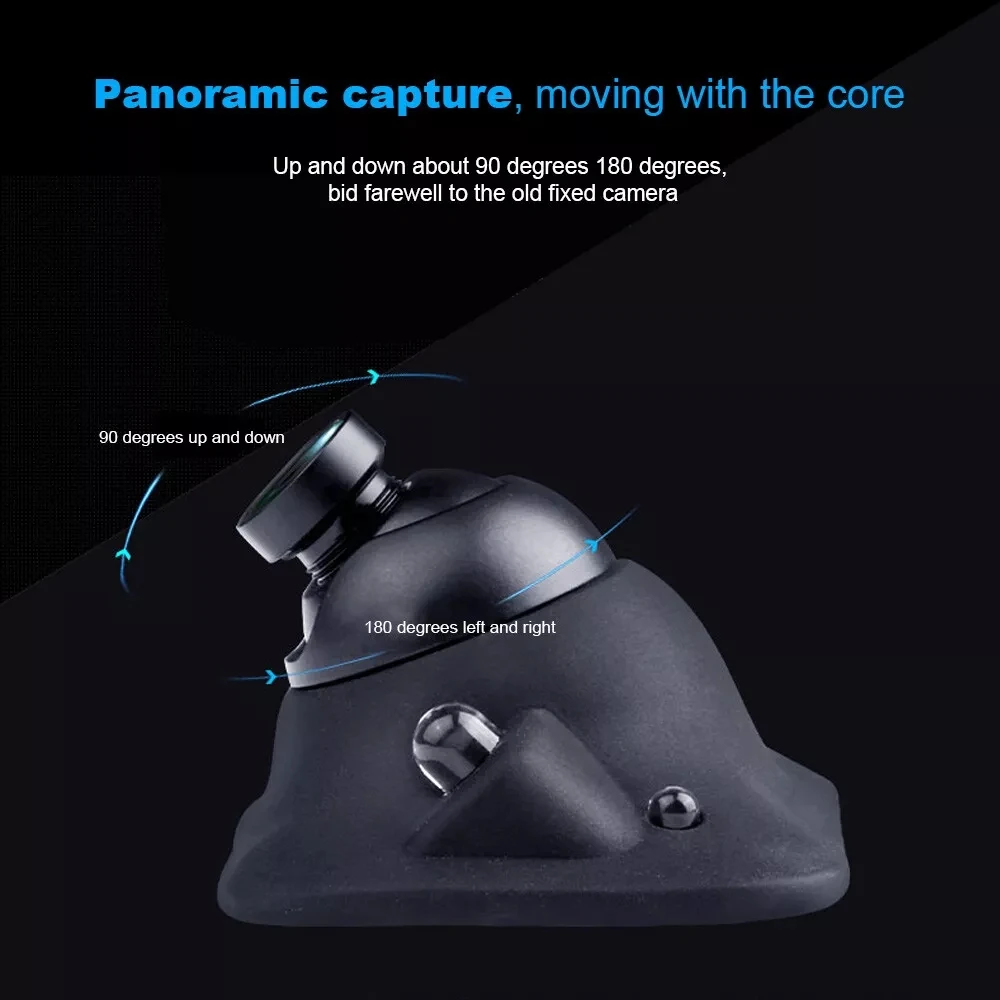

iPoster 4.3'' TFT LCD Rear Mirror Monitor with clip on the back of monitor, you can clip on original mirror, easy installing + 360 Rotated Rear View Backup Camera with No harm installing
with 2 IR LEDs Night Vision Waterproof & 6m AV cable Kit

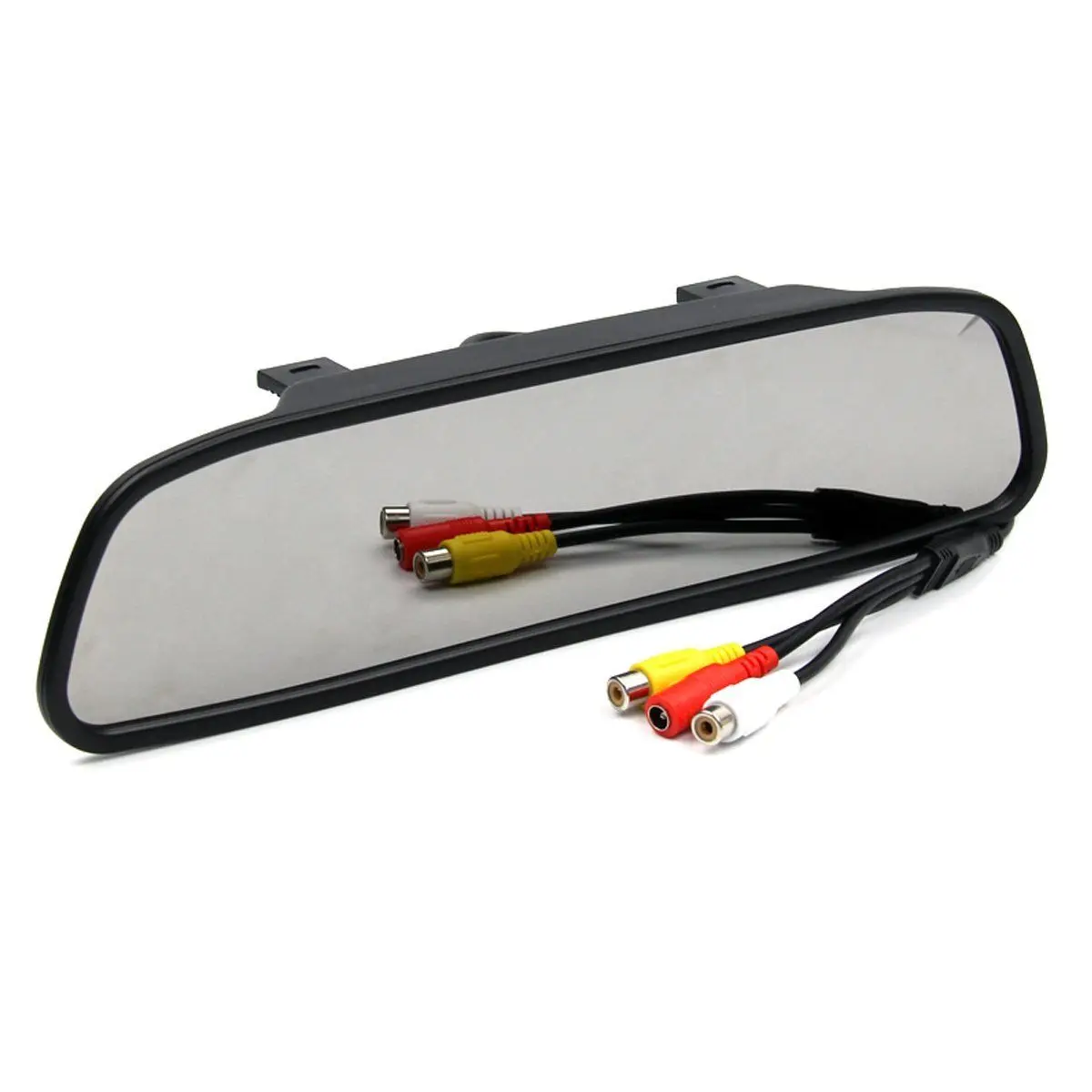

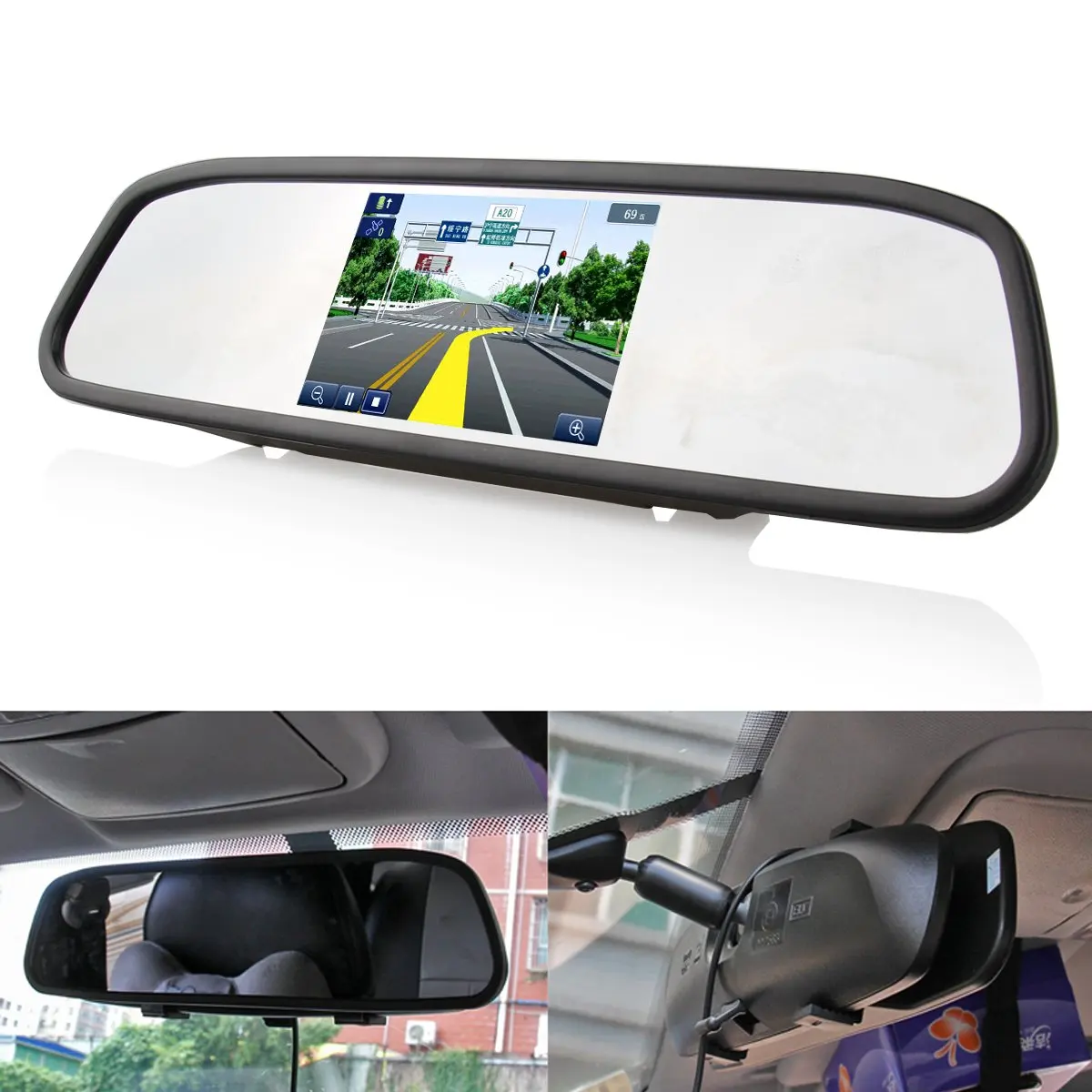

4.3 Mirror Monitor Main Features:
100% brand new and high quality

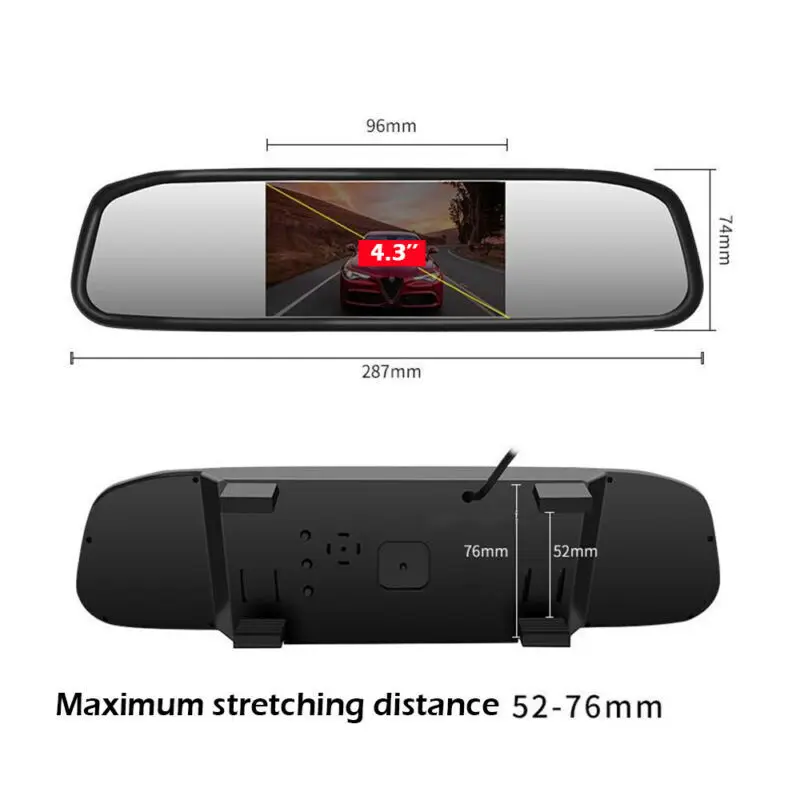

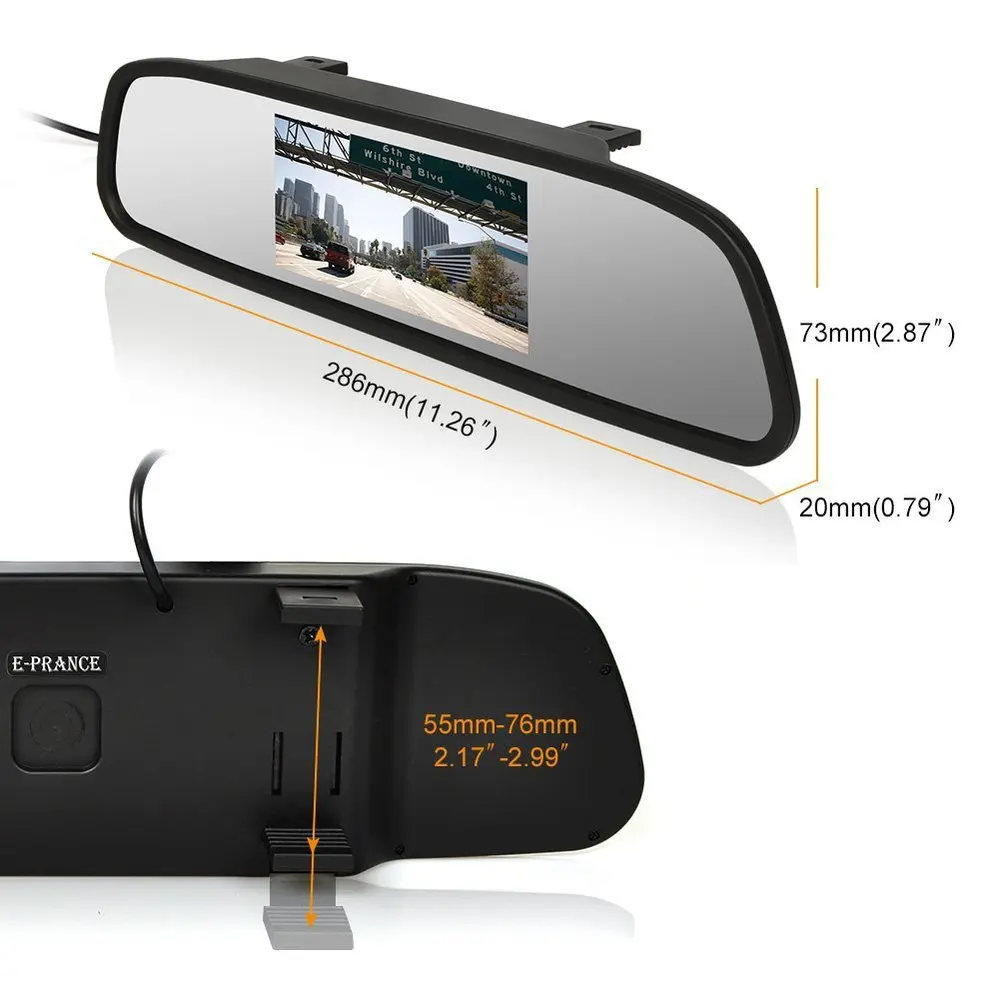

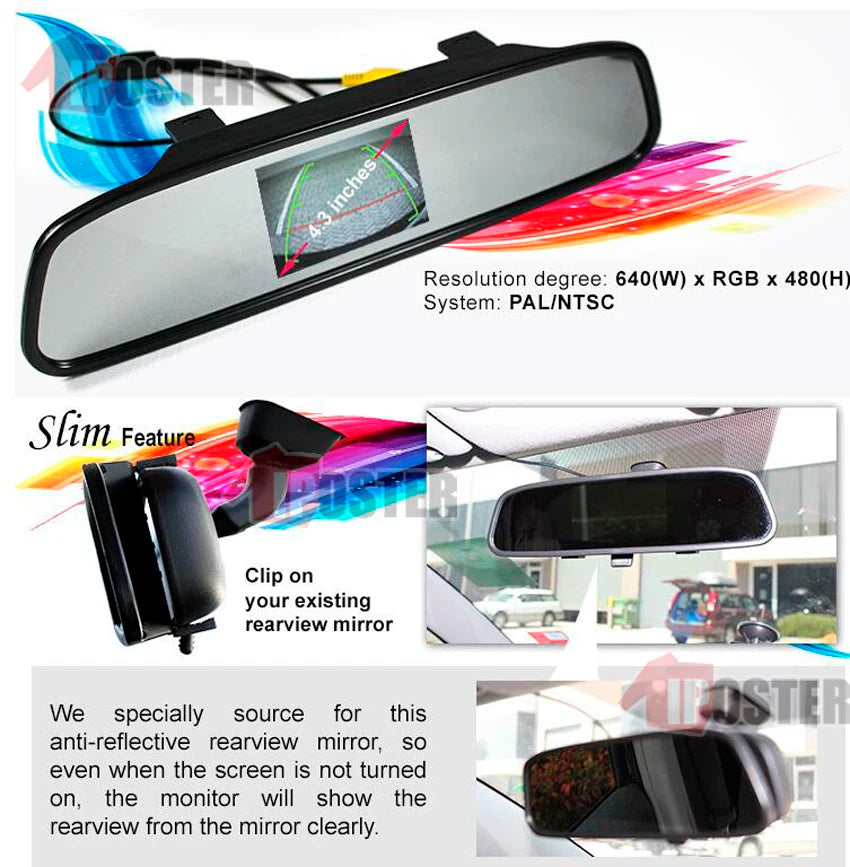

Easy installation, without damaging any parts of the car, clip on the original mirror
Special optical lens substitute the original rearview mirror
Supports car DVD, VCD, camera, and other video equipment

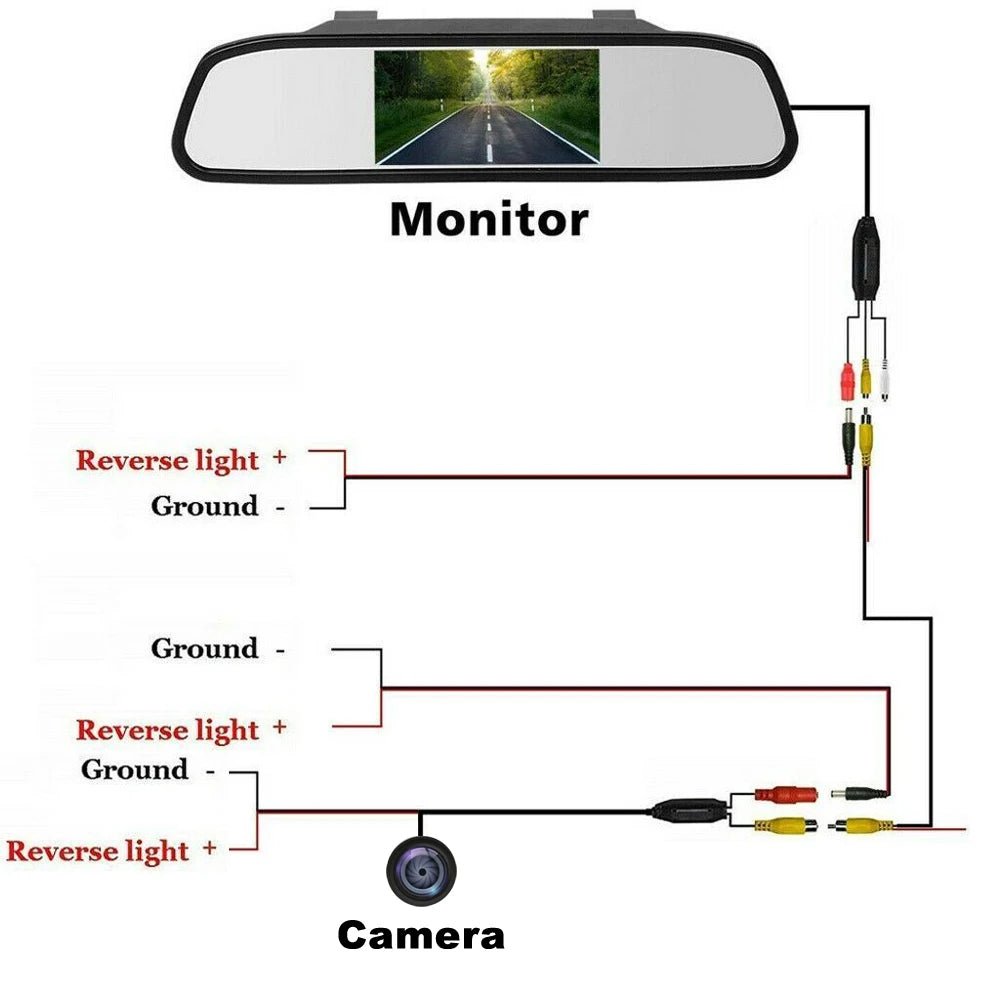

With 2 video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD

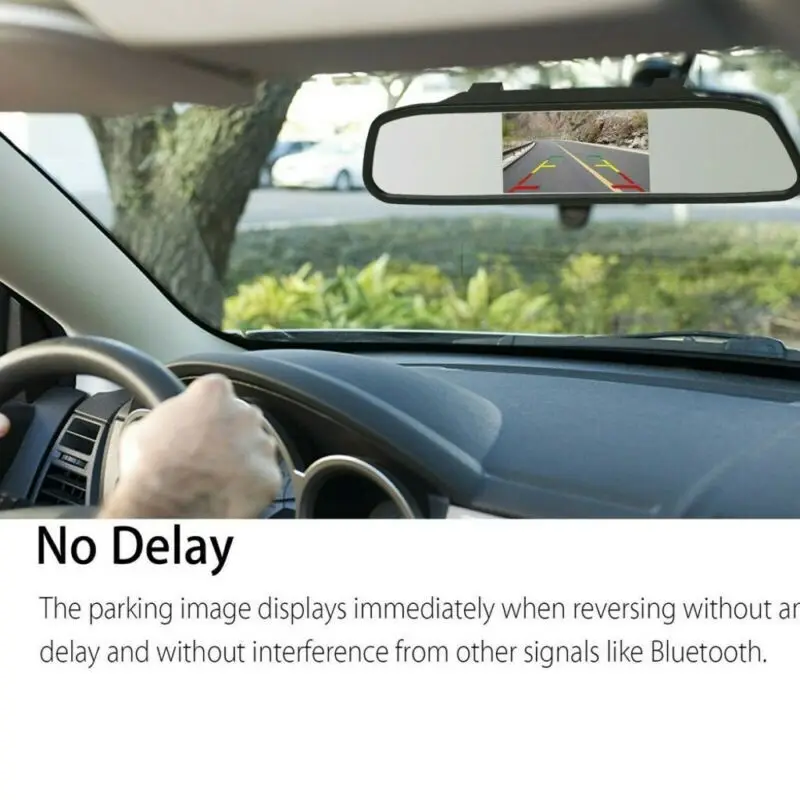

When parking the car, the rearview image appears onto the screen automatically

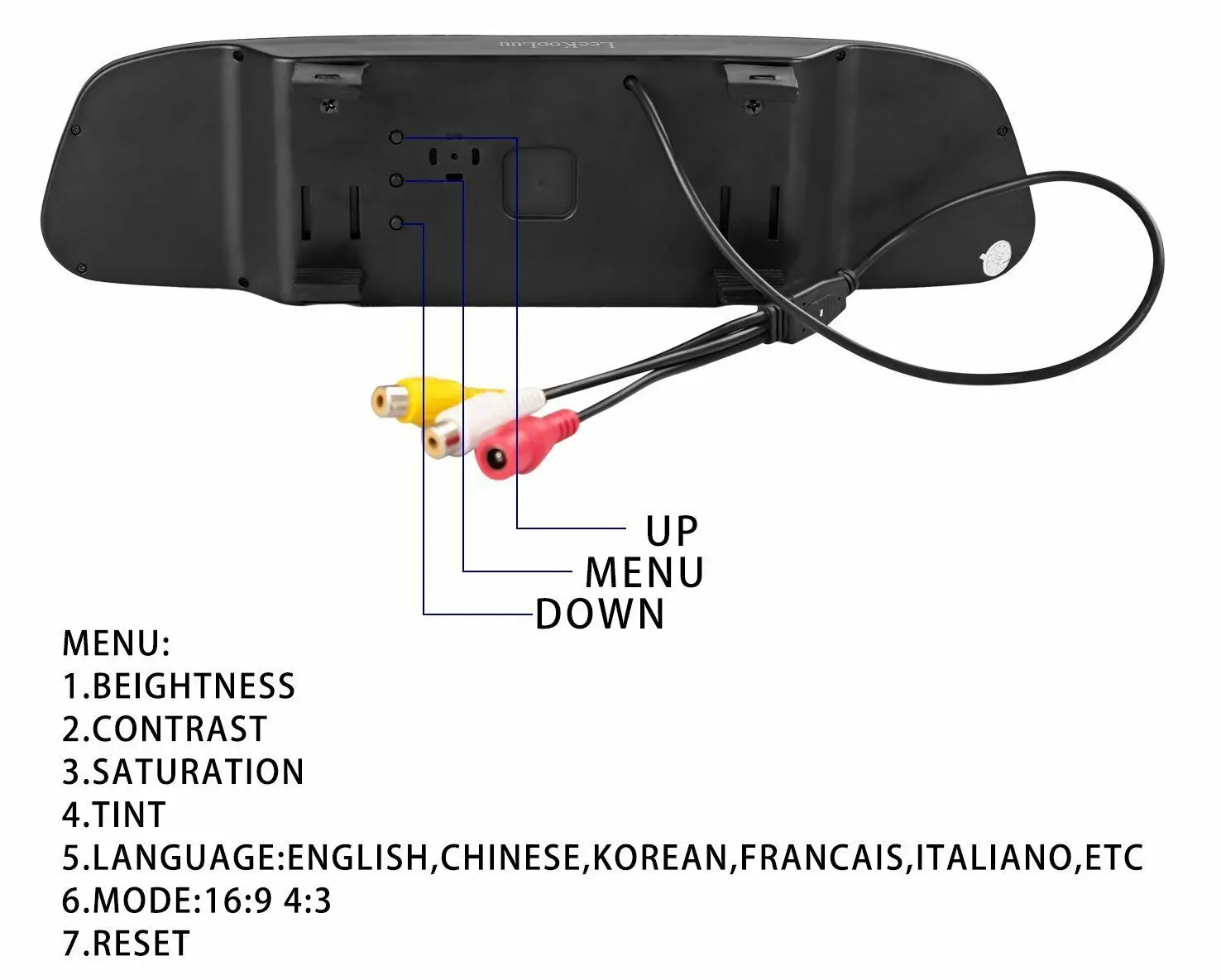

With the menu button,brightness/contrast/hue/ language is adjustable
No audio input or output

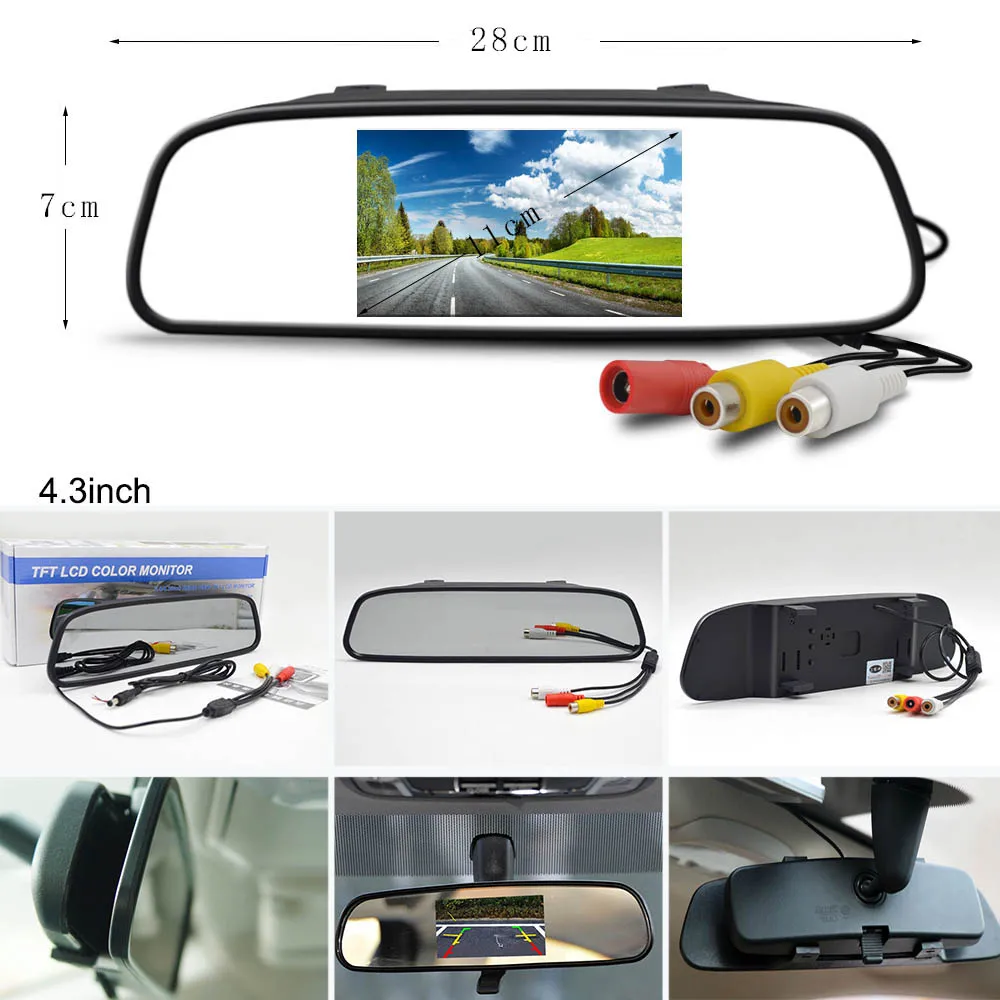

Monitor Specifications:
Screen size: 4.3 inch
Aspect ratio: 16:9
Resolution: 480RGBx272
Color: Black

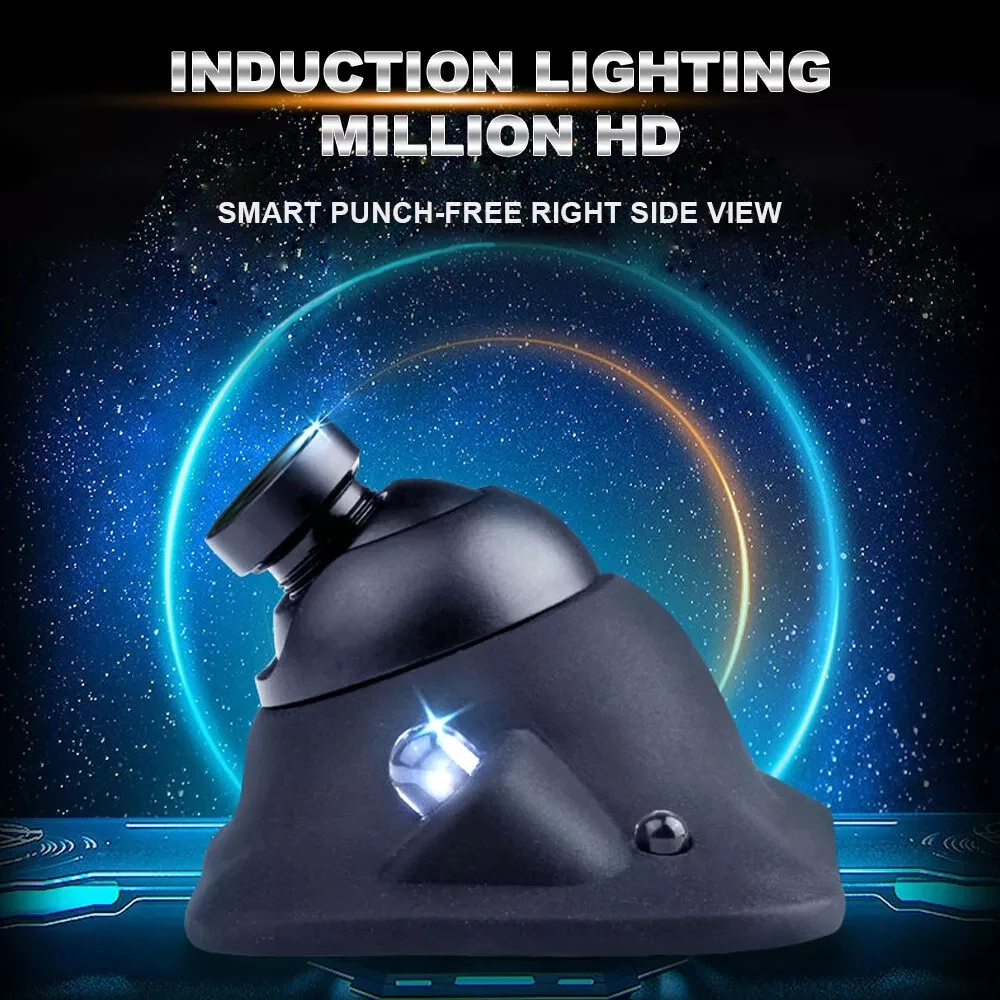

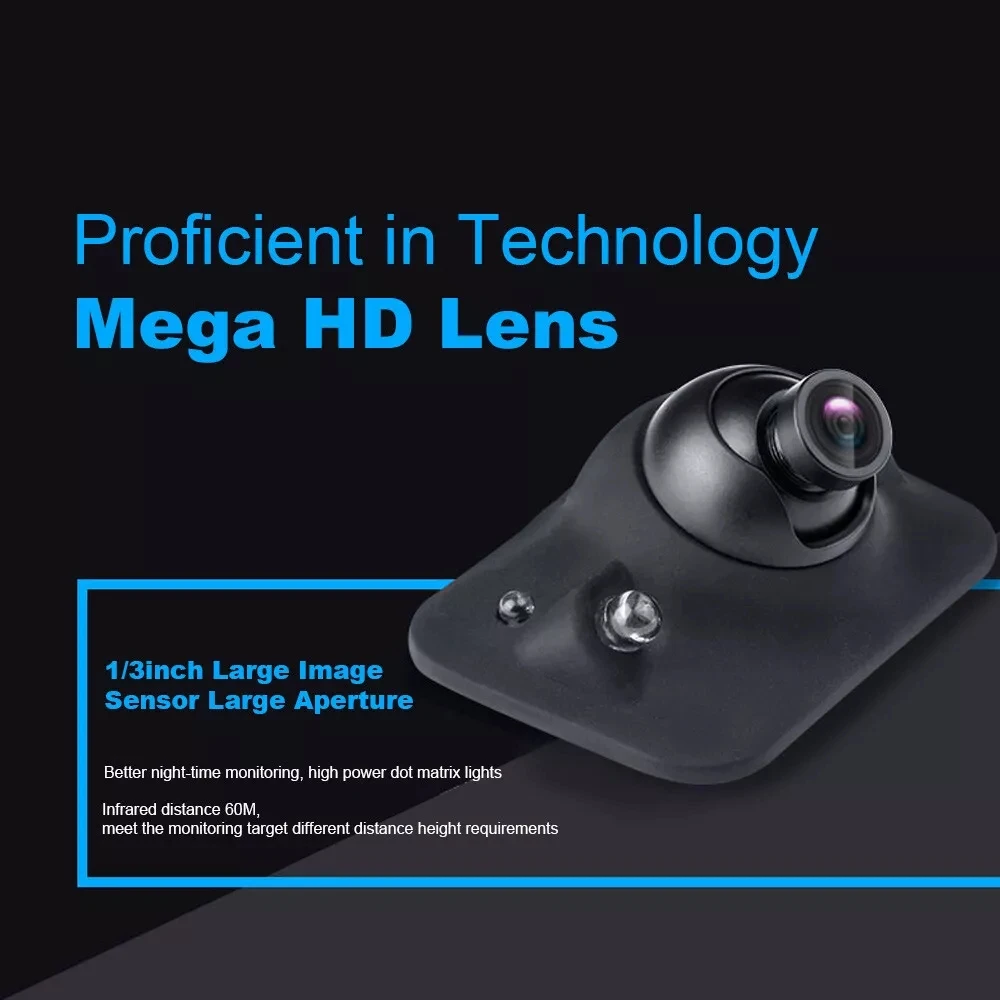

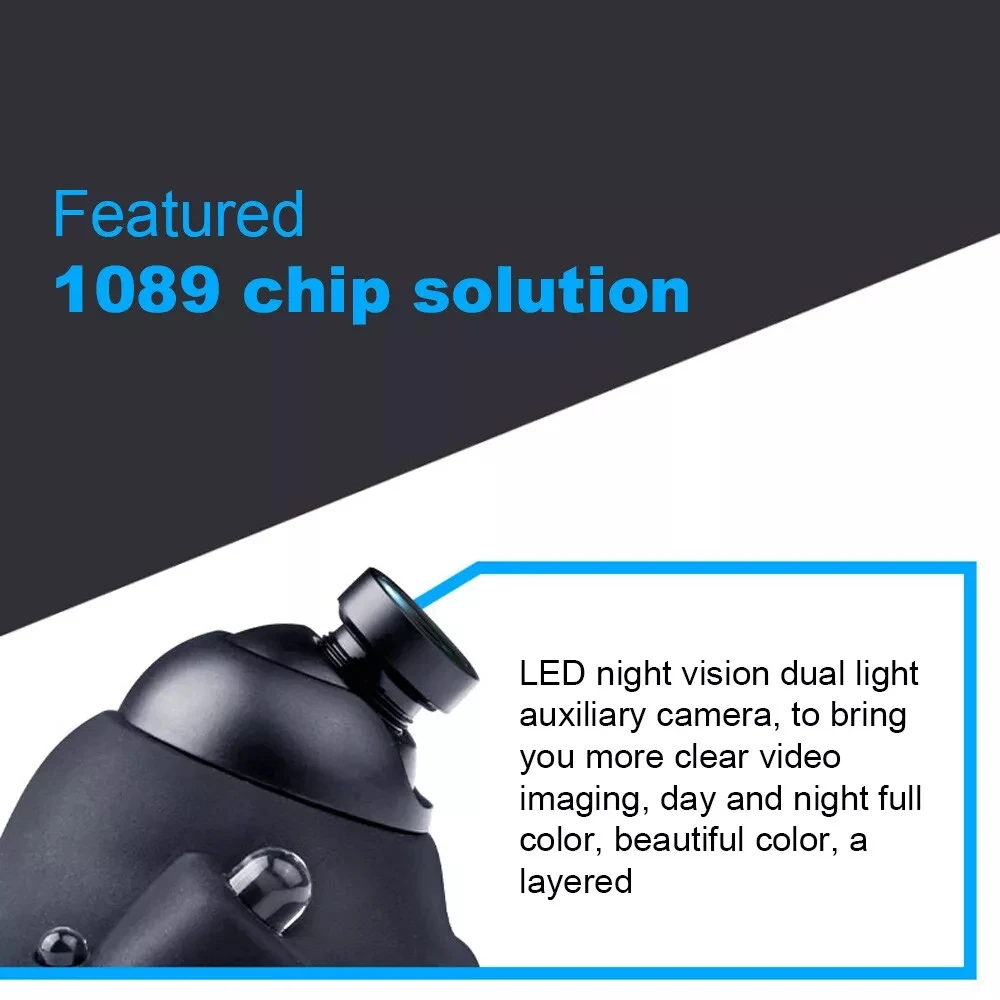

Camera Feature:
120 degree camera lens
High sensitivity, let you get rid of the poor rear vision

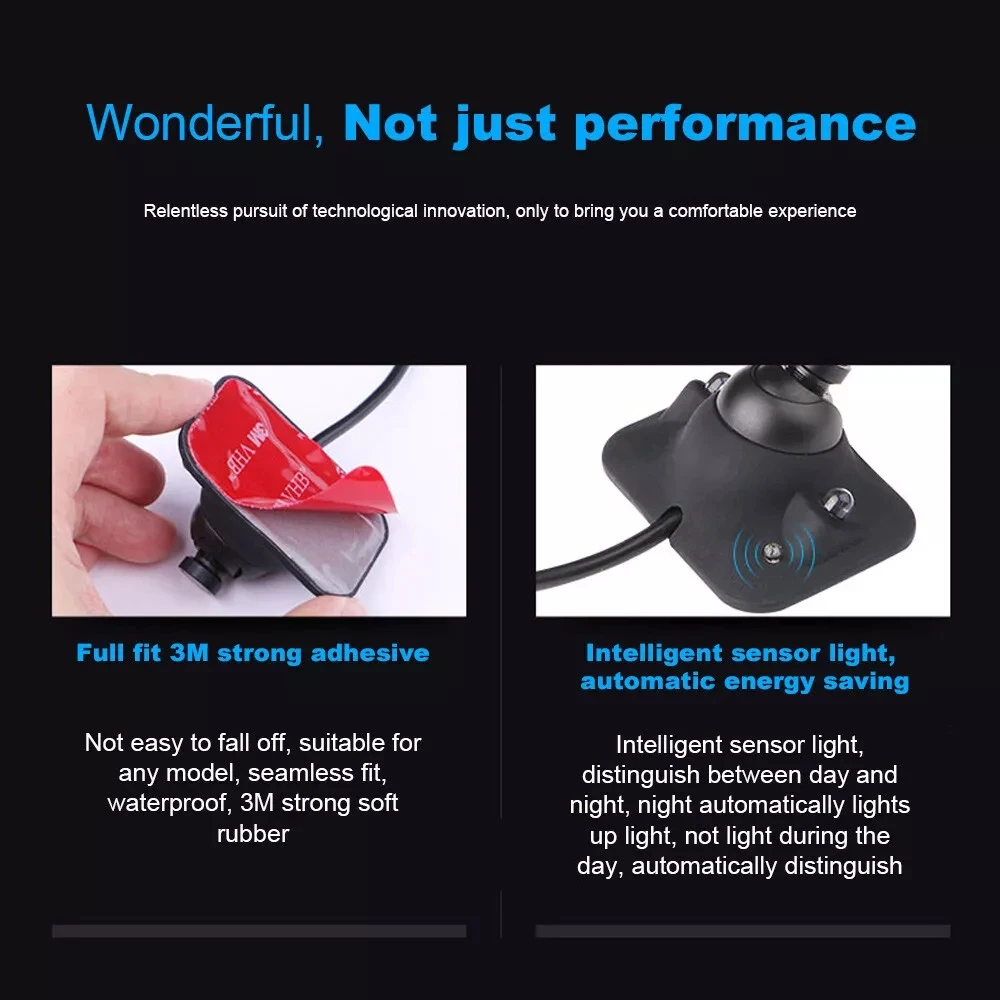

Waterproof design, there is no need to concern the rainy days
Low power consumption, low maintenance
With a distance line markings
Applicable to various brands of cars, etc
Easy to install

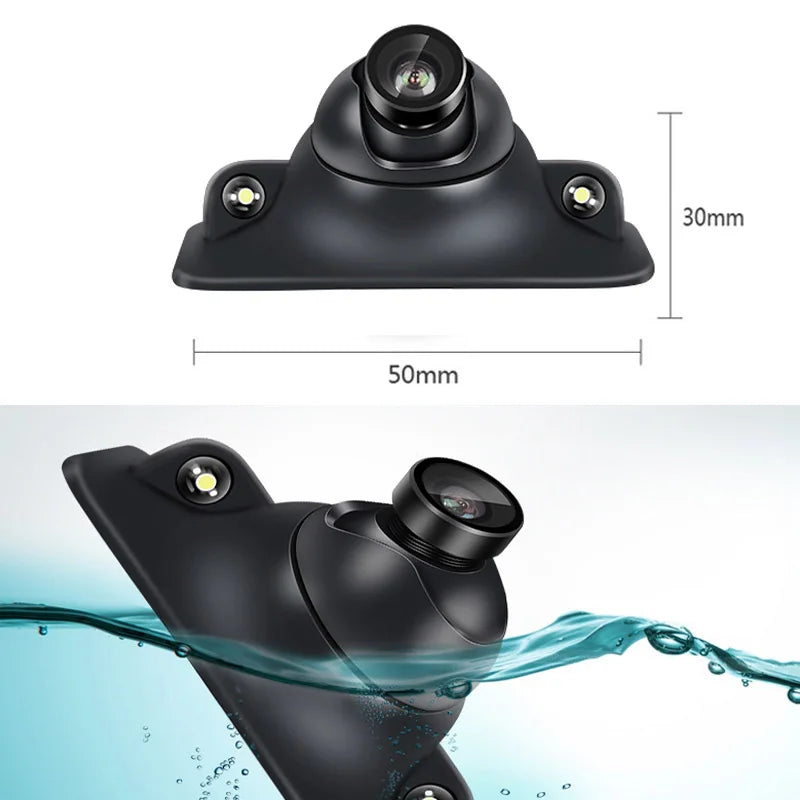

Camera Specification:

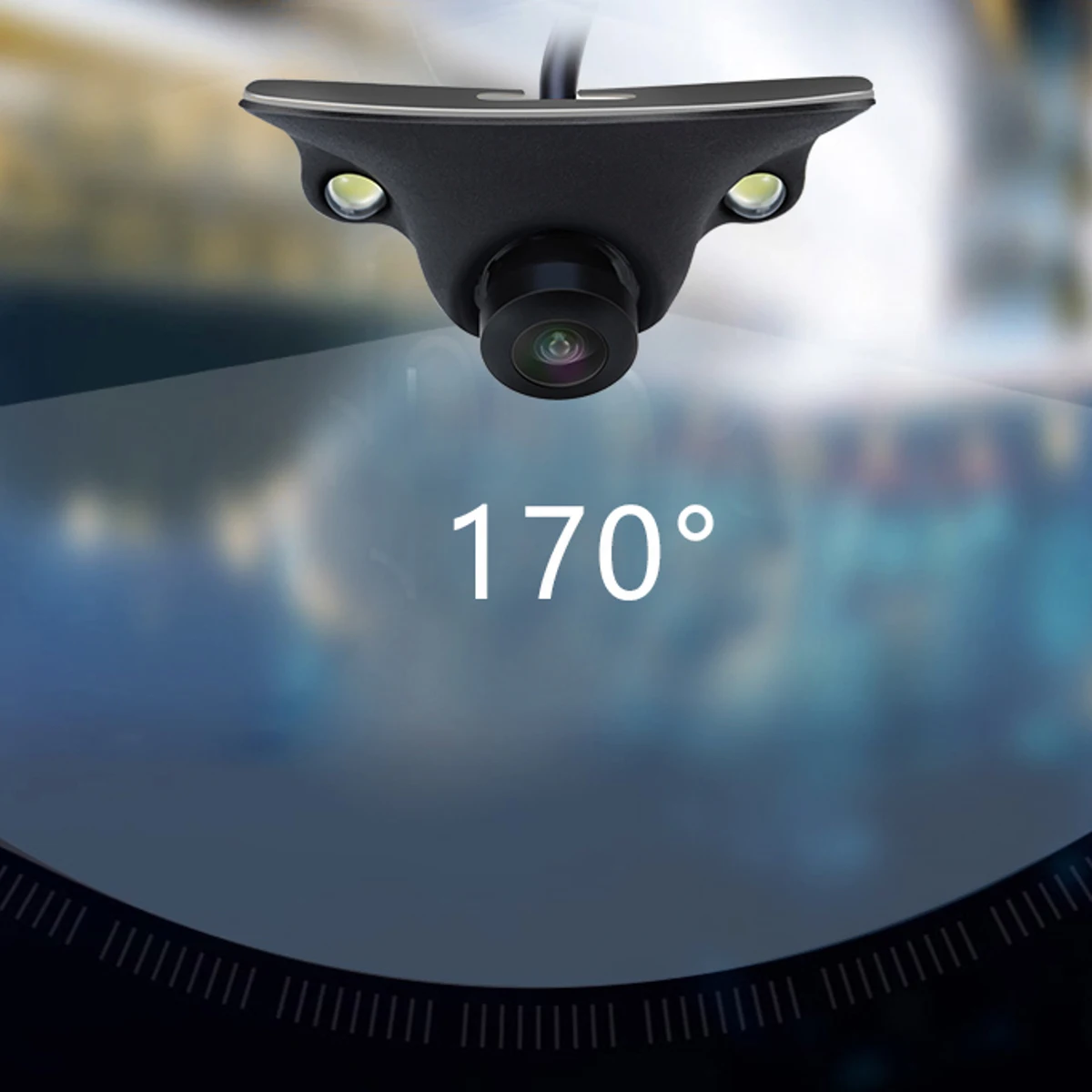

Lens angle: 170 degree
Effective pixels: 640 x 576 pixels
Resolution: 520TVL
TV system: PAL
White balance: Automatic
Power supply: DC 12V
Current consumption: 60mA
Sensing area: 3.584 x 2.688mm

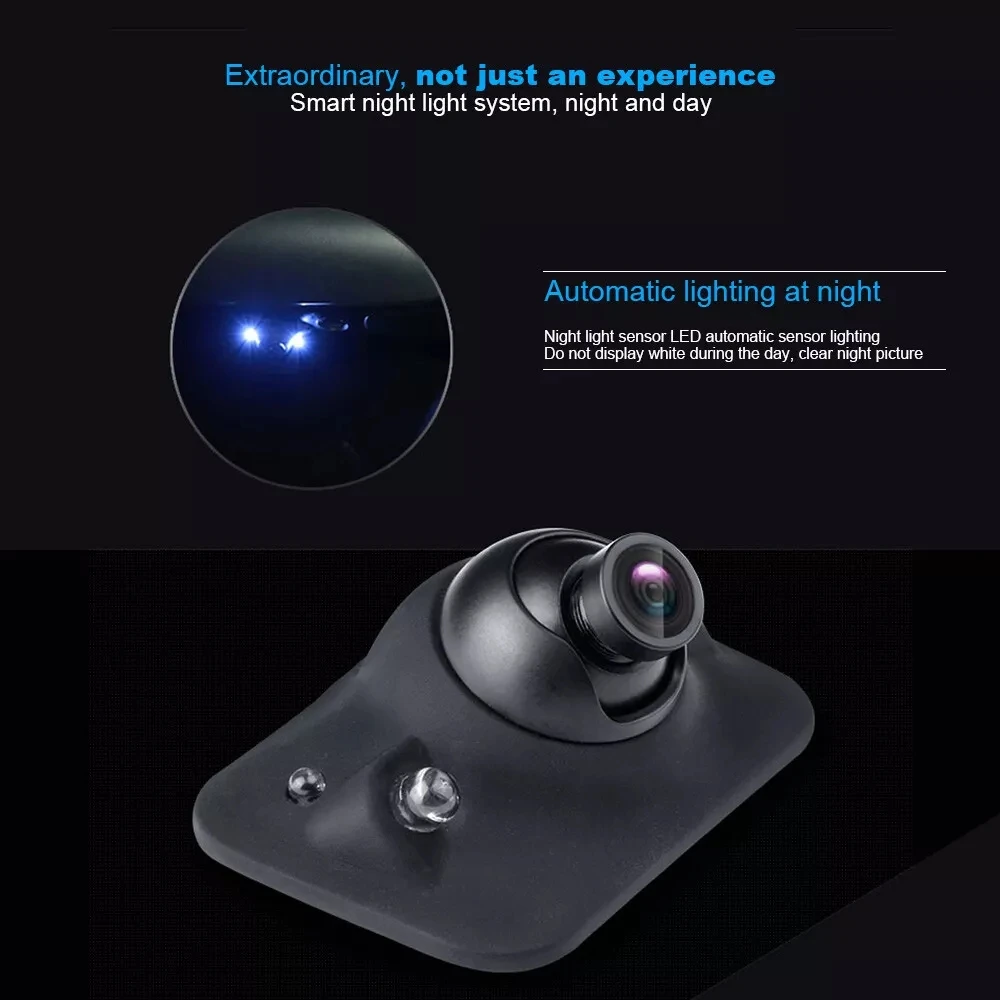

Night visual range: 0-5M
Minimum illumination: 0.01 - 0.2Lux/F=1.2 (0 Lux with IR on)
Video output: 1.0Vp-p, 75ohm,RCA connector(2.5mm+mini USB optional)
Operating Temperature: -20 - 75 centigrade, RH 95% MAX
Storage temperature: -40 - 85 centigrade, RH 95% MAX
Waterproof grade: IP68
Wired Or Wireless: Wired
Shell Material: Plastic
Lens Material: Plastic + Glass

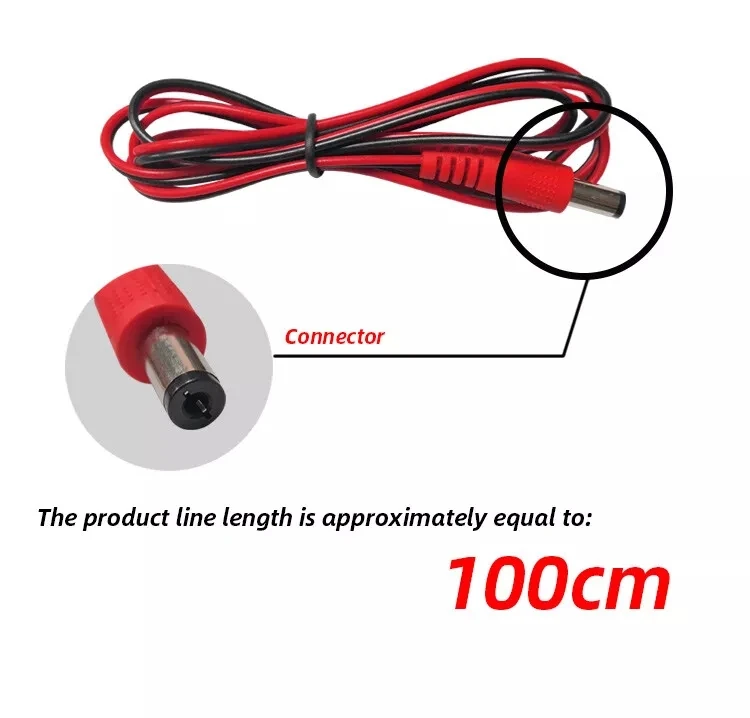

Power supply cable length: about 1M

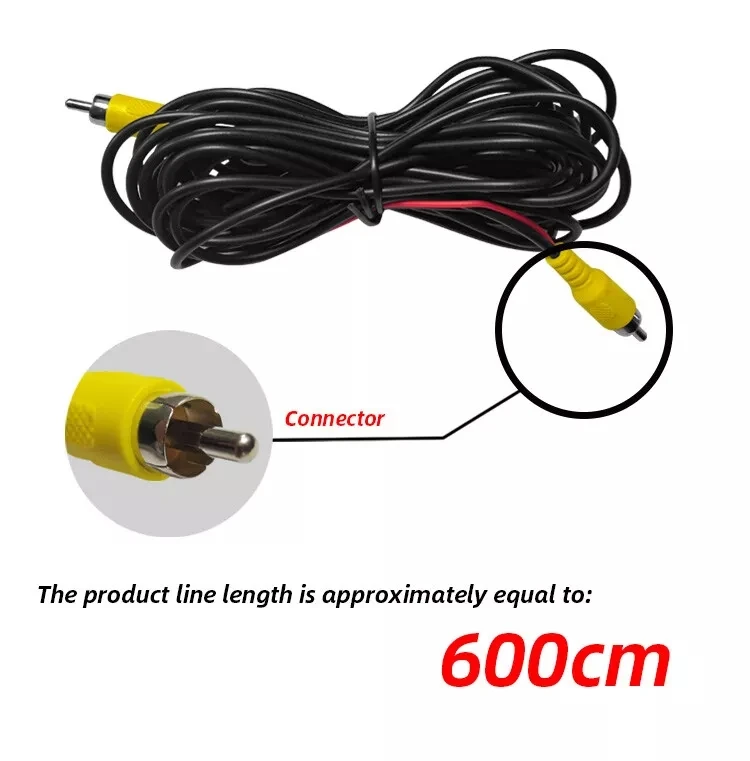

Video cable length: about 6M
Color: Black

Package includes:

1 x 4.3" Car Monitor (with original package)
1 x Power Cable
1 x English-Chinese User Manual
1 x Rear View Camera
1 x Power Cable
1 x Video Cable-6m
1 x User Manual
